General-purpose Resistors/Carbon Film Resistors

Features	Product Series	Image	Catalog	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Carbon film	CF			1.0 to 5.1M	0.25, 0.5	2, 5	+350 to -450,0 to -1300
Carbon film(Flame retardant)	CFP			2.2 to 1M	0.25, 0.5	2, 5	+350 to -450,0 to -1300

Precision Resistors/Metal Film Resistors

Features	Product Series	Image	Catalog	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Metal film (Precision, Low T.C.R.)	MF			0.51 to 5.11M	0.25, 0.5	0.5, 1, 2	±50 to ±200
Metal film (Precision, Low T.C.R.)	SN			1 to 1.5M	1, 2	0.5, 1, 2	±50 to ±200
Metal film (Flame retardant)	SNF			0.47 to 100	0.25, 0.5	5	+350 to -400
Metal film (Precision, Low T.C.R.)	RNS			0.2 to 6.8M	0.125 to 1	0.1, 0.25, 0.5, 1	±5 to ±50

Resistors for High Voltage Circuit

＊Click checkmark in the table below to access the download page where you can get the following data.
3D Model／Equivalent Circuit／Temperature Rise／Thermal Resistance／One Pulse Limiting Power

Features	Product Series	Image	Catalog	Design-support Data	Resistance (Ω)	Power Rating (W)	Tolerance (±%)	T.C.R.(×10-6/K)
Metal glaze film	RK			ー	100k to 100M	0.25 to 1	1, 2, 5	±100 to ±350
Discharge path resistor (UL1676)	RK1/2G			ー	1M to 12M	0.5	5	±250
Anti surge resistors (UL1676)/(EN60065) (EN62368-1 G.10)	RCR			ー	3.3 to 100M	0.25 to 3	1, 5	±200 to ±500
High voltage, High power	GS			ー	500k to 10G	0.25 to 12	0.5, 1, 2, 5, 10	±100, ±200
Anti surge・pulse ceramic resistor	PCF				3.3 to 390k	0.5 to 2	10, 20	-500 to -1300 -600 to -1500 -700 to -1800 -900 to -1900 -900 to -2000 -900 to -2200
Anti surge・pulse ceramic resistor	HPC				3.3 to 390k	0.5 to 5	10, 20
Ceramic resistor	CPCN			ー	1k to 15k	0.5 to 2	20	-1200±300
High voltage	P			ー	10 to 6G	1.5 to 250	5, 10, 20	±200 to ±3000
High voltage(Metal glaze film)	RK92*			ー	1M to 1G	0.5 to 4	0.5, 1, 2, 5, 10, 20	±50 to ±300
High voltage(Metal glaze film)	RK92-L*			ー	1.2M to 16M	4	10	±300

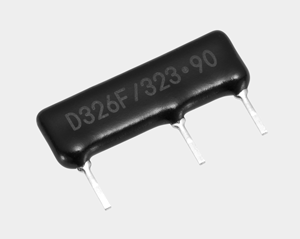

Thick Film Resistors For High Voltage High-precision high voltage divider	RK92D*			ー	R1/R2 750k/6.25k 2M/10k 13M/26k 33M/33k	Ra: 0.5W Rb: 0.2W	1	±100

*NRND(Not recommended for new design)

Power Type Resistors

＊Click checkmark in the table below to access the download page where you can get the following data.
Temperature Rise／One Pulse・Pulse Limiting Power

Features	Product Series	Image	Catalog	Design-support Data	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Metal oxide film (Small size)	MOS			ー	10 to 100k	0.5 to 5	1, 2, 5	±300
Metal film (Small size)	MOSX			ー	0.1 to 9.1	0.5 to 5	1, 2, 5	±300
Special power resistor	SPR			ー	2.2 to 110k	0.25 to 5	1, 2, 5	±350
Metal film (Small size)	SPRX			ー	0.1 to 2	0.25 to 5	1, 2, 5	±350

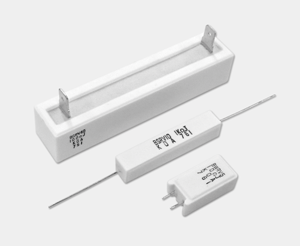

Cement case (Wire wound, Glass core) For automotive	BGRV				5.1 to 390	5 to 40	5, 10	±250
Cement case(wirewound,ceramic core) For automotive	BWRV				1 to 390	3 to 60	5	±250
Cement case (Metal oxide film), For automotive	BSRV				430 to 75k	3 to 20	5	±300
Cement case((Wire wound, Glass core)	BGR			ー	0.39 to 390	5 to 40	5, 10	±250
Cement case(Wire wound, Ceramic core)	BWR			ー	0.1 to 390	1 to 20	1, 2, 5	±100
Cement case (Metal oxide film)	BSR			ー	430 to 75k	2 to 20	5	±300

Wirewound Resistors

Features	Product Series	Image	Catalog	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Wire wound	CW			0.01 to 430	0.25 to 5	0.25, 0.5, 1, 2, 5, 10	±50 to ±500
Wire wound (Precision)	CW-H			0.1 to 3k	1 to 3	0.5, 1	±20,±50
Wire wound	CWFS			4.7 to 100	3, 5	5	±100
Wire wound (Precision)	RW			0.1 to 62k	0.5 to 14	0.5, 1, 3, 5	+20 to -50, +400 to -90

Current Sense Resistors/Low Resistance Resistors

Features	Product Series	Image	Catalog	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Cement case (Metal plate)	BPR			0.01 to 1	2 to 10	5, 10	±350
Metal wire	LR			3m to 100m	-	3, 5	±100

Resistor Networks/Resistor Array

Features	Product Series	Image	Catalog	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Thick film R network(Low profile)	RKL*			22 to 1M	125m, 200m	1, 2, 5	±200
Thick film R network(Standard)	RKC*			22 to 2.2M	20m to 250m	1, 2, 5	±200
Thick film R network(Power type)	RKH*			56 to 2.2M	250m, 500m	1, 2, 5	±200

*NRND(Not recommended for new design)

Fusing Resistors

Features	Product Series	Image	Catalog	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Fusing resistor	RF			0.1 to 15k	0.17 to 2	5	±350, ±1000
Fusing resistor(Constant current fusing type)	RF25CC			0.1 to 0.91	0.25	10	-

Jumper Wires

Features	Product Series	Image	Catalog	Resistance (Ω)
Jumper (Coating type)	Z			20mΩ max.
Jumper (Molded)	J-Z			-

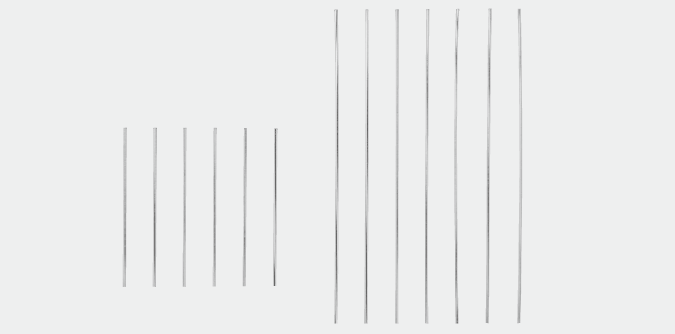

Jumper wire (Taping)	JL			-

CR Networks

Features	Product Series	Image	Catalog	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10-6/K)
Thick film C/R network(Customorders)	CR*			10 to 1M	-	5	±200
