Design support tools

Download data for Simcenter Flotherm

Overview

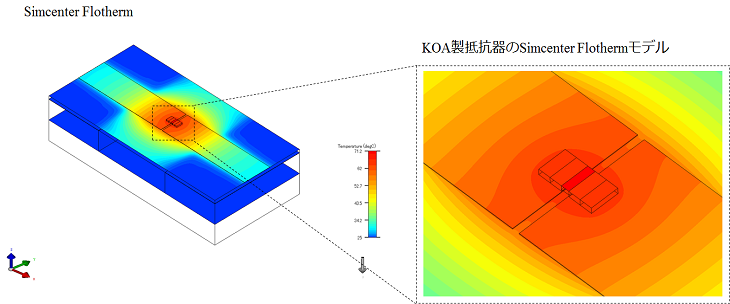

We provide simulation models of resistors manufactured in KOA which can be used in the ThermoFluid Simulator Simcenter Flotherm. The temperature of resistive elements and terminal parts can be calculated by using this model.It can be used for thermal analysis of electronic devices.

Downloading the model data

If you wish to download this data, please read and agree with the "KOA Technical Information General Disclaimer".
The data will be available after agreeing to the disclaimer.
If you agree, you will be bound by the"KOA Technical Information General Disclaimer."

Low-resistance power shunt

Products Model Version Last Update Download All
PS 1.03 2021/10/19 File size : 12kB
TLR 1.01 2019/9/30 File size : 388kB
SL 1.00 2018/10/15 File size : 510kB

Thick Film Chip Resistors

Products Model Version Last Update Download All
WK73 1.01 2020/3/31 File size : 61kB
SG73 1.00 2020/3/31 File size : 40kB

WU73

 1.00 2020/12/25 File size : 17kB

SR73

 1.00 2020/12/25 File size : 56kB

Technical document

Technical materials such as how to use the Simcenter Flotherm model and examples of analysis using the model are provided.

Title Item Document
How to use the Simcenter Flotherm model Outline and how to use the model PDF
