High Power Resistors

Wide range of resistance values in the product lineup is available for high power range

Application example

BGRV/BWRV/BSRV：Pre-charge resistor for xEV, discharge resistor (Passive and Active)

HPC/PCF: Power supplies, rapid discharge resistors for xEVs

Structural Differences Between Cement and Ceramic Resistors

Cement resistors(BGRV/BWRV/BSRV)

Ceramic resistors(HPC/PCF)

■If the pulse is continuous, cement resistors with high power rating are suitable
■Low resistance tolerance/stable circuit operation than low TCR
■ Possibility of adversely affecting other circuits is low because of open failure in case of overload
■ Excellent insulation and flame retardancy due to ceramic outer coating

■ If the pulse is not continuous, ceramic resistors that can be miniaturized are suitable
■Small size and lightweight
■Smaller than cement resistors and more pulse resistant
■Wide resistance range
■High resistance to environmental conditions　
■Non-inductive

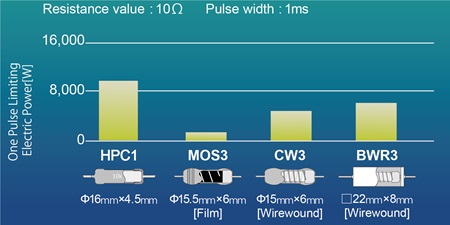

Comparison of pulse resistance of each type

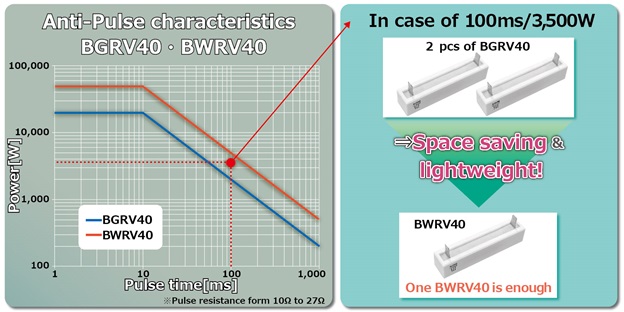

Improvement of anti-pulse resistance(BWRV40)

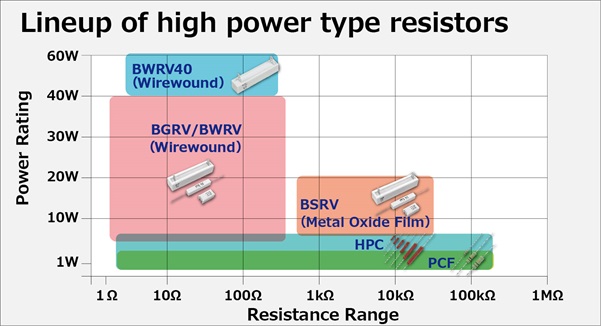

Product Lineup

General Catalog(12.7MB)

＊Click checkmark in the table below to access the download page where you can get the following data.
3D Model／Temperature Rise／One Pulse・Pulse Limiting Power

Features	Product Series	Design-support Data	Resistance (Ω)	Power Rating(W)	Tolerance (±%)	T.C.R.(×10^-6/K)
Cement case (Wire wound, Glass core) For automotive	BGRV		5.1 to 390	5 to 40	5, 10	±250
Cement case(wirewound,ceramic core) For automotive	BWRV		1 to 390	3 to 60	5	±250
Cement case (Metal oxide film), For automotive	BSRV		430 to 75k	3 to 20	5	±300
Cement case((Wire wound, Glass core)	BGR	ー	0.39 to 390	5 to 40	5, 10	±250
Cement case(Wire wound, Ceramic core)	BWR	ー	0.1 to 390	1 to 20	1, 2, 5	±100
Cement case (Metal oxide film)	BSR	ー	430 to 75k	2 to 20	5	±300
Anti surge・pulse ceramic resistor	HPC		3.3 to 390k	0.5 to 5	10, 20	-500 to -1300 -600 to -1500 -700 to -1800 -900 to -1900 -900 to -2000 -900 to -2200
Anti surge・pulse ceramic resistor	PCF		3.3 to 390k	0.5 to 2	10, 20
Ceramic resistor	CPCN	ー	1k to 15k	0.5 to 2	20	-1200±300
