Resistors(Leaded)

Search by Product Series

These resistors are classified into carbon film resistors, metal film resistors, metal oxide resistors, metal plated resistors, wirewound resistors. etc. according to the materials constituted.

General-purpose Resistors/Carbon Film Resistors

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Carbon film CF PDF link of carbon film resistor CF 1.0 to 5.1M 0.25, 0.5 2, 5 +350 to -450,0 to -1300
Carbon film(Flame retardant) CFP PDF link of carbon film resistor CFP 2.2 to 1M 0.25, 0.5 2, 5 +350 to -450,0 to -1300

Precision Resistors/Metal Film Resistors

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Metal film (Precision, Low T.C.R.) MF PDF link of metal film precision resistor MF 0.51 to 5.11M 0.25, 0.5 0.5, 1, 2 ±50 to ±200
Metal film (Precision, Low T.C.R.) SN PDF link of metal film precision resistor SN 1 to 1.5M 1, 2 0.5, 1, 2 ±50 to ±200
Metal film (Flame retardant) MFP PDF link of metal film flame retardant resistor MFP 10 to 100k 0.25, 0.5 1 ±100
Metal film (Flame retardant) SNF PDF link of metal film flame retardant resistor SNF 0.47 to 100 0.25, 0.5 5 +350 to -400
Metal film (L-shape lead) MRS PDF link of Metal film L-shape lead resistor MRS 10 to 1M 0.125 to 0.3 0.01, 0.02, 0.05, 0.1, 0.25, 0.5 ±2.5 to ±25
Metal film (Precision, Low T.C.R.) RNS PDF link of Metal film precision resistor RNS 0.2 to 6.8M 0.125 to 1 0.1, 0.25, 0.5, 1 ±5 to ±50

Resistors for High Voltage Circuit

Features Product Series Image Catalog Resistance
(Ω)
Power Rating
(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Metal glaze film RK PDF link of metal glaze film resistor RK 100k to 100M 0.25 to 1 1, 2, 5 ±100 to ±350
Discharge path resistor (UL1676) RK1/2G PDF link of discharge path resistor RK1/2G 1M to 12M 0.5 5 ±250
Anti surge resistors (UL1676)/(EN60065)
(EN62368-1 G.10)
RCR PDF 3.3 to 100M 0.25 to 3 1, 5 ±200 to ±500
High voltage, High power GS PDF link of high voltage/high power resistor GS 500k to 10G 0.25 to 12 0.5, 1, 2, 5, 10 ±100, ±200

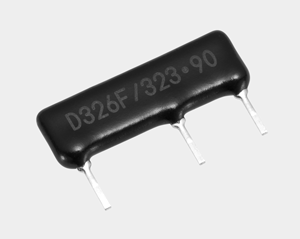

High voltage(Metal glaze film) RK92 PDF link of high voltage metal glaze thin film resistor RK92 1M to 1G 0.5 to 4 0.5, 1, 2, 5, 10, 20 ±50 to ±300
High voltage(Metal glaze film) RK92-LNEW RK92-L PDF link of high voltage metal glaze thin film resistor RK92 1.2M to 16M 4 10 ±300
Anti surge・pulse ceramic resistor PCF PDF link of anti-surge/anti-pulse ceramic resistor PCF 3.3 to 390k 0.5 to 2 10, 20 -500 to -1300
-600 to -1500
-700 to -1800
-900 to -1900
-900 to -2000
-900 to -2200
Anti surge・pulse ceramic resistor HPC PDF link of anti-surge/anti-pulse ceramic resistor HPC 3.3 to 390k 0.5 to 5 10, 20
Ceramic resistor CPCN PDF link of ceramic resistor CPCN 1k to 15k 0.5 to 2 20 -1200±300
High voltage P PDF link of high voltage resistor P 10 to 6G 1.5 to 250 5, 10, 20 ±200 to ±3000

Power Type Resistors

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Metal oxide film (Small size) MOS PDF link of metal oxide film resistor MOS 10 to 100k 0.5 to 5 1, 2, 5 ±300
Metal film (Small size) MOSX PDF link of metal oxide film resistor MOSX 0.1 to 9.1 0.5 to 5 1, 2, 5 ±300
Special power resistor SPR PDF link of special power resistor SPR 2.2 to 110k 0.25 to 5 1, 2, 5 ±350
Metal film (Small size) SPRX PDF link of metal film resistor SPRX 0.1 to 2 0.25 to 5 1, 2, 5 ±350

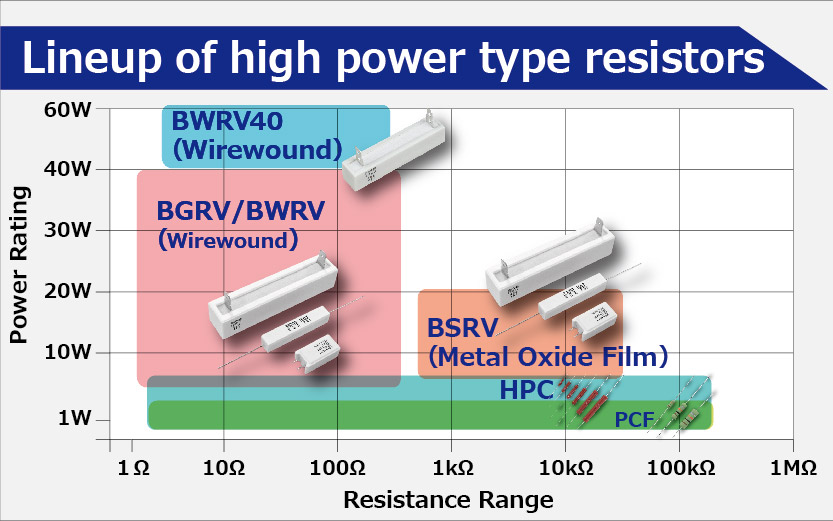

Cement case (Wire wound, Glass core)
For automotive

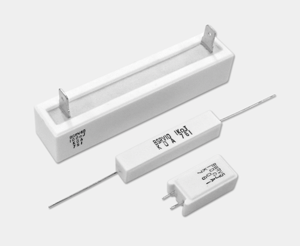

BGRVNEW KOA's Cement Case Resistors For Automotive/BGRV・BSRV PDF link of metal film resistor SPRX 5.1 to 390 7 to 40 5, 10 ±250
Cement case (Metal oxide film),
For automotive
BSRVNEW KOA's Cement Case Resistors For Automotive/BGRV・BSRV PDF link of metal film resistor SPRX 430 to 75k 5 to 20 5 ±300
Cement case((Wire wound, Glass core) BGR PDF link of wirewound type glass core resistor BGR 0.39 to 390 5 to 40 5, 10 ±250
Cement case(Wire wound, Ceramic core) BWR PDF link of wirewoud type ceramic core resistor BWR 0.1 to 390 1 to 20 1, 2, 5 ±100
Cement case (Metal oxide film) BSR PDF link of metal oxide film resistor BSR 430 to 75k 2 to 20 5 ±300

Wirewound Resistors

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Wire wound CW PDF link of wirewound resistor CW 0.01 to 430 0.25 to 5 0.25, 0.5, 1, 2, 5, 10 ±50 to ±500
Wire wound CW-H PDF link of wirewound resistor CW-H 0.1 to 3k 1 to 3 0.5, 1 ±20,±50
Wire wound CWFS CWSF PDF link of wirewound resistor CWFS 4.7 to 100 3, 5 5 ±100
Wire wound(Precision) RW PDF link of wirewound precision type resistor RW 0.1 to 62k 0.5 to 10 0.5, 1, 3, 5 +20 to -50,
+400 to -90

Current Sense Resistors/Low Resistance Resistors

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Cement case (Metal plate) BPR PDF link of cement case metal plate resistor BPR 0.01 to 1 2 to 10 5, 10 ±350
Metal wire LR PDF link of metal wire type resistor LR 3m to 100m - 3, 5 ±100

Resistor Networks/Resistor Array

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Thin film R network (Balance resistors) MRP PDF link of thin film resistor network MRP 50 to 100k 100m 0.1, 0.25, 0.5, 1 ±25, ±50
Thick film R network(Low profile) RKL PDF link of low profile resistor network RKL 22 to 1M 125m, 200m 1, 2, 5 ±200
Thick film R network(Standard) RKC PDF link of resistor network RKC 22 to 2.2M 20m to 250m 1, 2, 5 ±200
Thick film R network(Power type) RKH PDF link of resistor network RKH 56 to 2.2M 250m, 500m 1, 2, 5 ±200

Fusing Resistors

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Fusing resistor RF PDF link of fusing resistor RF 0.1 to 15k 0.17 to 2 5 ±350, ±1000
Fusing resistor(Constant current fusing type) RF25CC PDF link of fusing resistor RF25CC 0.1 to 0.91 0.25 10 -

Jumper Wires

Features Product Series Image Catalog Resistance
(Ω)
Jumper (Coating type) Z PDF link of jumper Z 20mΩ max.
Jumper (Molded) J-Z PDF link of molded type jumper J-Z

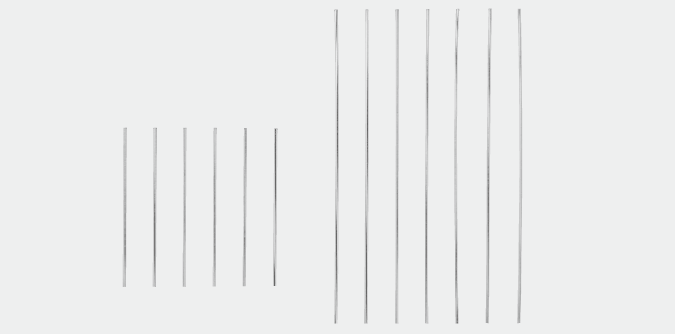

Jumper wire (Taping) JL PDF link of jumper wire JL -

CR Networks

Features Product Series Image Catalog Resistance
(Ω)
Power
Rating(W)
Tolerance
(±%)
T.C.R.(×10-6/K)
Thick film C/R network(Customorders) CR PDF link of C/R network CR 10 to 1M - 5 ±200

Common Specification

Items Catalog
Minimum Ordered Quantity PDF link of Minimum Ordered Quantity
Recommended Pad Dimensions PDF link of Recommended Pad Dimensions
Packagings For Chip Components PDF link of Packagings For Chip Components
Axial Taping PDF link of Axial Taping
Radial Taping PDF link of Radial Taping
Forming PDF link of Forming
SMD Forming PDF link of SMD Forming
Color code•Resistance marking•E series numbers PDF link of Color code•Resistance marking•E series numbers
Introduction of terminal part temperature
