New Product Lineup of HSG73P-AT -Excellent Heat Resistance, Heat Shock Resistance-
HSG73P-AT series achieves high reliability in a high temperature environment
improves heat withstanding and heat shock resistance by enhancing material and structure of endured pulse power flat chip resistor SG73P series.
This HSG73P-AT series
has high heat resistance up to +175℃ and passed 1,000 cycles of -55 °C/+175 °C heat shock tests (⊿R≦1%). The product is endurable up to 10% of its rated power at the maximum operating temperature of 175°C and is suitable for the applications under the harsh environment, like an integrated mechanical/electrical in-vehicle unit.
can be replaceable with smaller components, contributing to reducing mounting space.
ECUs: Power Control Unit, sensors around the engines, Mechatronic integration of motor drive unit etc.
Industrial equipment: Devices operated under high temperature (power supplies, measuring equipment etc.), peripherals of power devices, excavators etc.
Contact KOA sales for details.

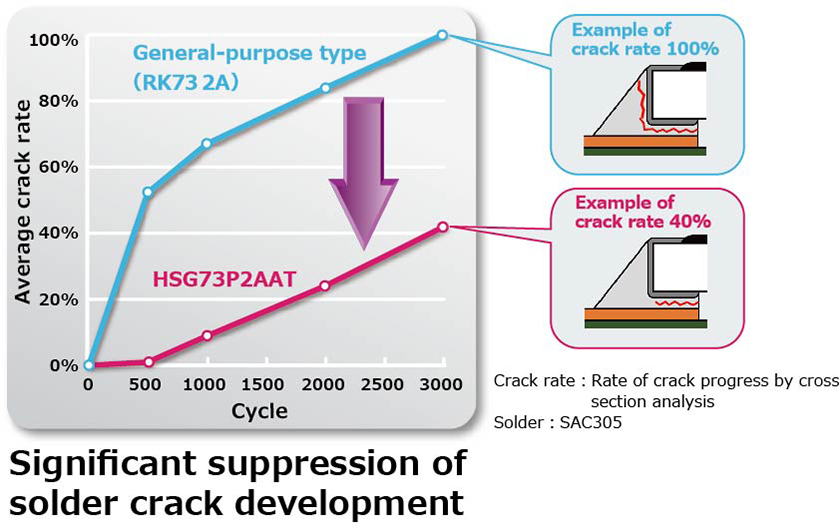

Heat Shock Test -55℃/+175℃ | HSG73P-AT[0805size]

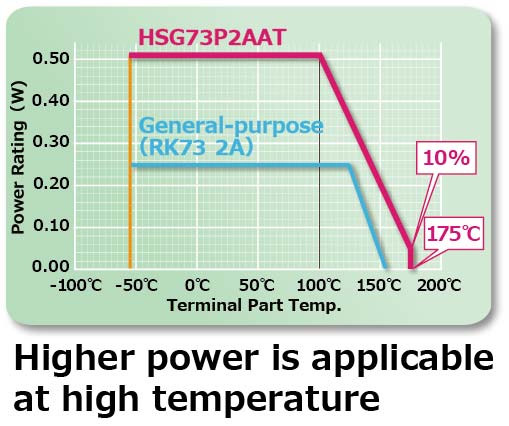

Derating Curves Based On The Terminal Part Temp. | HSG73P-AT[0805size]
