Application Category

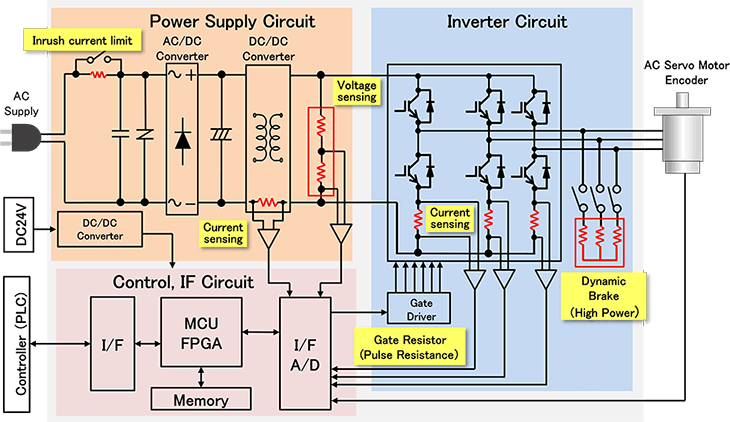

AC Servo Amplifier

A Power Supply Circuit

  Surface Mounting Type Leaded Type
General Purpose / Resistors RK73B, RK73H
CF
High Precision / Resistors RK73G MF
High Precision & High Reliability / Resistors RS73, RN73H, RN73R
RNS
Wide Terminal / Resistors WK73R

High Power Rating / Resistors WK73R(High Power), SLR, MWS
MOS(X)SPR(X),
CWBGRBWR,
BSR
Surge Resistance & Pulse Resistance / Resistors SG73, SG73S, SG73P, SG73G, WG73

High Heat Resistance & Pulse Resistance / Resistors HSG73P

Anti-sulfurization / Resistors RK73B-RT, RK73H-RT, RK73G‐RT, RK73Z-RT,  SR73-RT, WK73-RT, RS73-RT, SG73-RT, SG73S-RT, SG73P-RT

Inrush Current Resistant / Resistors MWS
CWBWRBGR,
PCFHPC
Current sensing / Low Resistance Resistors UR73, SR73, WK73S, WU73, TLR, TLR (Small Size)
TLR (High Power)TLRHSL

Voltage Sensing / Resistors RS73, HV73, RN73H,RN73R
RK92RCR
Circuit Protection / Fuses CCF1NCCF1F

Circuit Protection / Varistors NV73

Choke Coil / Inductors LPC4235/4545

Jumper / Jumpers RK73Z, TLRZ, SLZ1


B Inverter Circuit

  Surface Mounting Type Leaded Type
General Purpose / Resistors RK73BRK73H CF
High Precision / Resistors RK73G MF
High Precision & High Reliability / Resistors RS73, RN73H, RN73R RNS
Wide Terminal / Resistors WK73R
High Power Rating / Resistors WK73R (High Power), SLR, MWS MOS(X)SPR(X),
CWBGRBWR,
BSR
Surge Resistance & Pulse Resistance / Resistors SG73, SG73S, SG73P, SG73G, WG73
High Heat Resistance & Pulse Resistance / Resistors HSG73P
Anti-sulfurization / Resistors RK73B-RTRK73H-RT, RK73G-RT, RK73Z-RT, SR73-RT, WK73-RT, RS73-RT, SG73-RT, SG73S-RT, SG73P-RT
Current sensing / Low Resistance Resistors UR73, SR73, WK73S, WU73, TLR, TLR (Small Size),
TLR (High Power), TLRH,SL

Circuit Protection / Varistors NV73
Jumper / Jumpers RK73Z, TLRZ, SLZ1

C Control, I/F Circuit

  Surface Mounting Type Leaded Type
General Purpose / Resistors RK73B, RK73H

High Precision / Resistors RK73G

High Precision & High Reliability / Resistors RS73, RN73H, RN73R

Surge Resistance & Pulse Resistance / Resistors SG73, SG73S, SG73P, SG73G, WG73

Anti-sulfurization / Resistors RK73B-RTRK73H-RT, RK73Z-RT, RK73G‐RT, SG73-RT, SG73S-RT, SG73P-RT

Circuit Protection / Varistors NV73

Jumper / Jumpers RK73Z

Temperature Compensation /Linear Resistors LT73LP73
