Application Category

Flat Panel TV(LCD)

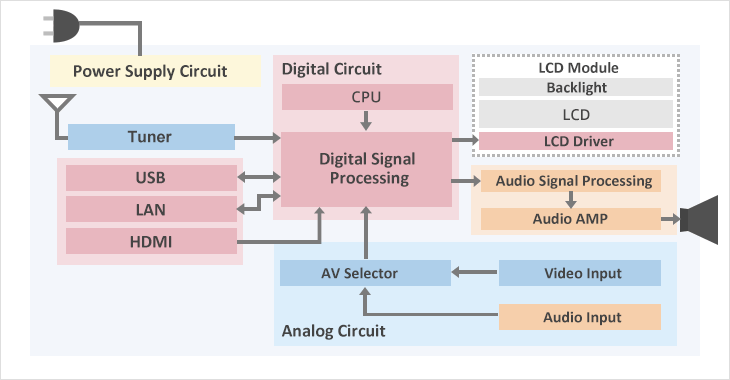

H USB G LAN F Audio Signal Processing/Audio Amplifier E Analog Circuit D Tuner C Digital Circuit B LCD Driver A Power Supply Circuit

A Power Supply Circuit

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B CF
High Voltage / Resistors HV73
High Power Rating / Resistors WK73R,  SL,  SLR
MOS(X)SPR(X)CW
Current Sensing / Resistors SR73UR73(D)WK73SSLSLPTLRHTLR
MOS(X)SPR(X)BPR
Discharge Path/ Resistors HV73
RCR
Inrush Current Resistant / Resistors   CWBWRBGR
Circuit Protection / Fuses CCF

Choke Coil / Inductors LPC

Large Current Jumper / Jumpers TLRZ


B LCD Driver

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B
Surge Resistant / Resistors SG73SSG73PSG73SG73GWG73
Circuit Protection / Fuses CCF,CCPTF16AT
Temperature Compensation / Thermistors NT73

Temperature Compensation / Linear Resistors LT73LP73

C Digital Circuit

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B
Circuit Protection / Fuses CCPTF16SN

Check Terminal / Checker Chips RCTRCU


D Tuner

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B
Tuning / Inductors KQKQC


E Analog Circuit

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B
Circuit Protection / Fuses CCF, CCPTF16AT
ESD Protection / Varistors NV73
Temperature Compensation / Thermistors NT73
Temperature Compensation / Linear Resistors LT73LP73
Choke Coil / Inductors LPC

Check Terminal / Checker Chips RCTRCU

F Audio Signal Processing/Audio Amplifier

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B
Choke Coil / Inductors LPC

G LAN

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B
Tuning / Inductors KQKQC


H USB Interface

  Surface Mounting Type Leaded Type
Resistors RK73GRK73HRK73B
ESD Protection / Varistors NV73
